The Tow Frame
The front and rear of the tow frame are square tool bars which permit the use of commercial tool clamps for easy attachment of hitches and accessories (Figures 3 & 4). Typically the draw bar tongue is removed for trailer hauling to reduce the width of the load. Since the front and rear of the tow frame are identical, hitches can be attached to either side to reverse the direction of roller rotation. This feature nearly doubles the life of imprinting teeth, the tips of which concave sharpen on their leading edges
Frame Shape and Size: Rectangular to fit rollers 3,4,5,6,7,8,9 & 10 feet in length
Rear tool bar: (2 ¼-inch side)
Frame Ends: Clamped to tool bars with center bearing bracket
Roller Axle:Full-length, cold-rolled steel, 2 ½-inch diameter
Axle Bearings: Pillow block type with cast steel housing and double tapered roller bearings
for 2 ½-inch axle
Tool Attachments:
(1) Draw bar tongue for field operation
(2) Trailer loading and unloading wheels
(3) Three-point hitch (optional)
(4) Ripping Arms (optional)

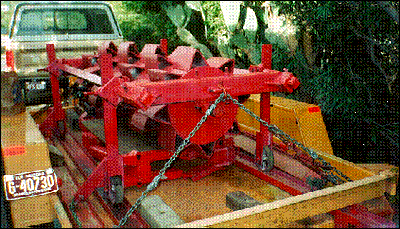

Figure 3. Imprinter tow frame with imprinting roller and loading/unloading wheels attached.

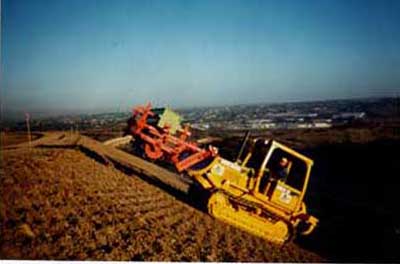

Figure 4: Imprinter tow frame attached to a dozer blade to form a steep-slope imprinter.
Tractor hydraulics force imprinting teeth into the ground.
